Build n8n AI Agents: AI Workflow Automations

What is an n8n AI Agent? Understanding AI-Powered Workflow Automation

Definition and Core Concepts of n8n AI Agents

According to n8n’s official documentation, an n8n AI agent is an autonomous system that receives data, makes rational decisions, and acts within its environment to achieve specific goals. The AI agent’s environment is everything the agent can access that isn’t the agent itself. This agent uses external tools and APIs to perform actions and retrieve information.

Unlike static automation tools, n8n AI agents combine the power of Large Language Models (LLMs) with n8n’s visual workflow automation platform to create intelligent, decision-making workflows that can understand context, adapt to new situations, and autonomously achieve complex goals.

The n8n platform revolutionizes how developers approach workflow automation by providing seamless integration capabilities that extend far beyond traditional tools. Unlike basic automation solutions, n8n makes it possible to connect diverse data sources including GitHub repositories, Google Sheets, and Airtable databases through a sophisticated HTTP request node system. The platform’s open-source LLMs and advanced prompt engineering capabilities enable users to customize their workflows dynamically, ensuring that complex tasks can be automated without requiring extensive coding knowledge. Essential tools like Ollama and various LLM apps integrate effortlessly, allowing teams to build comprehensive AI workflows with n8n that adapt to changing business requirements.

*** You can find n8n AI Agent examples that you can use at the bottom of the article!

n8n AI Agent vs Traditional Automation: Key Differences

The fundamental distinction between n8n AI agents and traditional automation lies in their decision-making capabilities:

Traditional Automation:

• • Follows predetermined “if-this-then-that” rules

• • Requires explicit programming for every scenario

• • Cannot handle unexpected inputs gracefully

• • Limited to structured data processing

• • Static workflow paths with no adaptation

n8n AI Agents:

• • Use LLMs for reasoning and contextual decision-making

• • Adapt to new scenarios without reprogramming

• • Process natural language and unstructured data

• • Learn from context and previous interactions

• • Dynamic workflow execution based on real-time analysis

The Role of LLMs in n8n AI Agent Architecture

Large Language Models serve as the “reasoning engine” behind n8n AI agents. As detailed in n8n’s AI agents implementation guide, the reasoning engine operates through a combination of perception, reasoning, and action execution.

The n8n platform supports multiple LLM providers including:

• • OpenAI (GPT-4, GPT-4 Turbo, GPT-4o-mini)

• • Google (Gemini Pro, Gemini 2.5)

• • Anthropic (Claude 3.5 Sonnet, Claude Opus)

• • Open Source Models (DeepSeek, Groq, Llama)

n8n AI Agent vs ChatGPT: Capabilities and Use Cases

While ChatGPT excels at conversational AI and content generation, n8n AI agents are designed for workflow automation and business process integration:

ChatGPT:

• • Conversational interface focused

• • Limited external tool integration

• • Requires human input at each step

• • General-purpose text generation

n8n AI Agent:

• • Workflow automation focused

• • Deep integration with 400+ applications

• • Autonomous operation with minimal supervision

• • Business process optimization and task execution

Why Choose n8n AI Agent for Business Automation

Industry research shows that 51% of companies are already using AI agents in production. n8n AI agents offer unique advantages:

Cost Efficiency: Self-hosted options provide unlimited executions Integration Depth: Native connections to hundreds of business applications Visual Development: Low-code interface reduces development time Open Source Foundation: Community-driven improvements and transparency

The Evolution from Rule-Based to Intelligent Workflow Automation

The automation landscape has evolved through three distinct phases:

1. 1. Basic Task Automation: Simple trigger-action workflows

1. 1. Complex Business Process Automation: Multi-step, conditional workflows

1. 1. Intelligent Agentic Automation: AI-driven decision-making and adaptation

n8n AI agents represent the third phase, enabling truly intelligent automation that can understand context, make decisions, and adapt to changing conditions.

n8n AI Agent Fundamentals: Core Technology and Benefits

Understanding n8n AI Agent Technology Stack

The n8n AI agent technology stack consists of several integrated layers:

1. LangChain Integration Layer: n8n takes it a step further by providing a low-code interface to LangChain. In n8n, you can simply drag and drop LangChain nodes onto the canvas and configure them.

2. AI Agent Orchestration: The Tools Agent uses external tools and APIs to perform actions and retrieve information. It can understand the capabilities of different tools and determine which tool to use depending on the task.

3. Memory Management System: Persistent conversation context and state management 4. Visual Workflow Designer: Drag-and-drop interface for complex agent workflows 5. Integration Framework: Native connectors to 400+ applications and services

Business Benefits of Implementing n8n AI Agents

Based on comprehensive industry analysis, companies implementing AI agents achieve:

• • Faster Information Analysis: Automated processing of large datasets and document extraction

• • Increased Team Productivity: 40-60% reduction in routine task completion time

• • Enhanced Customer Experience: 24/7 support capabilities with improved response times

• • Accelerated Development: AI-assisted coding, debugging, and documentation generation

• • Improved Data Quality: Automated validation and error detection reducing manual mistakes

n8n AI Agent Pricing and ROI Considerations

Pricing Models:

• • n8n Cloud: Subscription-based with usage tiers

• • Self-Hosted: One-time setup with unlimited executions

• • Enterprise: Custom pricing with advanced features and support

ROI Calculation Framework:

• • Labor cost savings from automated tasks

• • Reduced error rates and rework costs

• • Faster time-to-market for new processes

• • Scalability benefits compared to manual operations

Technical Architecture of n8n AI Agents

Core Components of n8n AI Agent Architecture

Data Processing Pipeline and Workflow Integration

The n8n AI agent architecture operates through a sophisticated data processing pipeline:

1. 1. Input Processing: Data ingestion from triggers, webhooks, and scheduled events

1. 1. Context Analysis: LLM-powered understanding of request intent and requirements

1. 1. Tool Selection: Intelligent choice of appropriate tools based on task requirements

1. 1. Execution Planning: Multi-step workflow generation and optimization

1. 1. Result Processing: Output formatting and response generation

API Connections and Interaction Methods

n8n AI agents connect to external systems through multiple methods:

• • REST API integrations for web services

• • Database connections for data operations

• • Webhook endpoints for real-time event processing

• • File system access for document processing

• • Message queue integration for asynchronous operations

LangChain Integration with n8n AI Agent Systems

ReAct AI Pattern Implementation

The ReAct (Reasoning and Acting) pattern enables agents to:

• • Reason about problems and plan solutions

• • Act by executing tools and gathering information

• • Observe results and adjust strategies accordingly

This pattern is implemented through specialized prompt templates and tool calling interfaces within the n8n environment.

Understanding the n8n AI Agent Reasoning Engine

The reasoning engine operates through three core phases:

1. Perception: Unlike simple chatbots, AI agents use multi-step prompting techniques to make decisions. Through chains of specialized prompts (reasoning, tool selection), agents can handle complex scenarios that are not possible with single-shot responses.

2. Decision-Making: The LLM analyzes input context, evaluates available tools, and develops execution plans based on configured system prompts and historical interactions.

3. Action Execution: Agents execute planned actions using connected tools and APIs, then process results to determine next steps or provide final responses.

n8n AI Agent Node Types and Capabilities

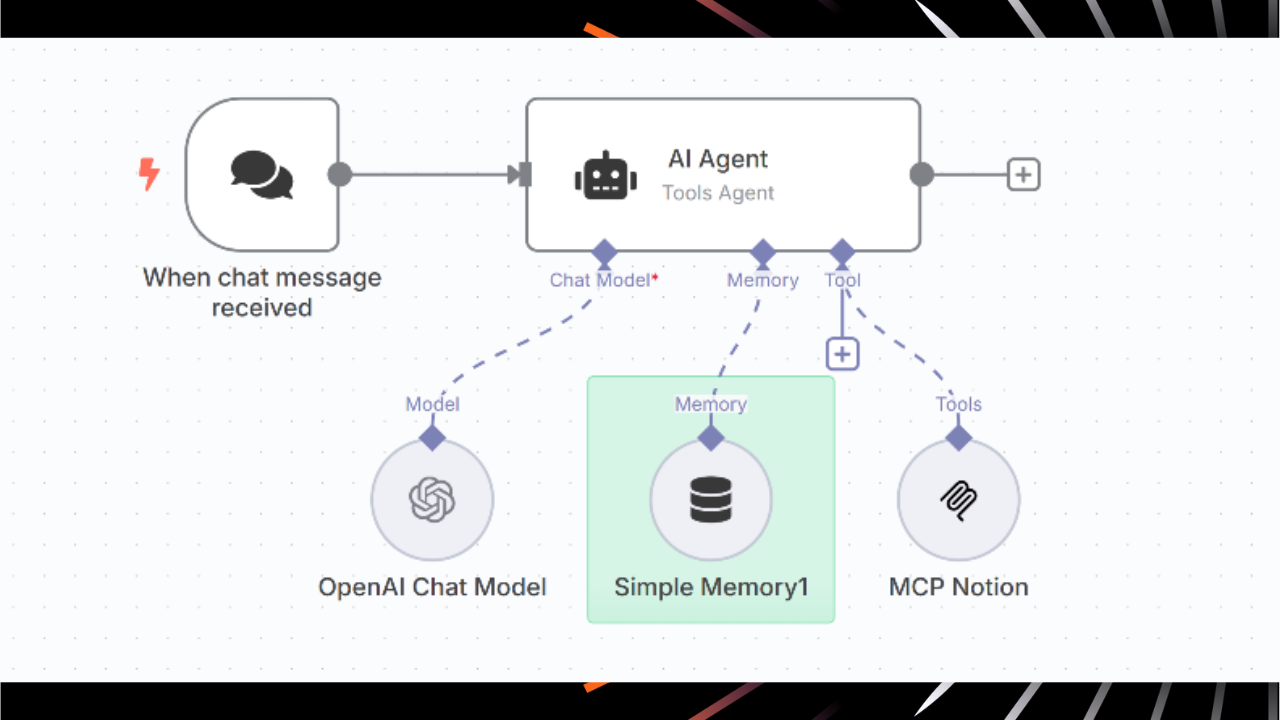

Tools Agent: Primary Recommended Implementation

The Tools Agent implementation serves as the primary recommended approach for most use cases.

Core Functionality:

• • Enhanced ability to work with tools and ensure standard output format

• • Implements LangChain’s tool calling interface for describing available tools and schemas

• • Improved output parsing capabilities through formatting tool integration

Configuration Best Practices:

• • Connect at least one tool sub-node to the AI Agent node

• • Configure clear tool descriptions for optimal selection

• • Set appropriate system messages for agent behavior guidance

Conversational Agent: For Models Without Native Tool Calling

When to Use:

• • Legacy LLM models without function calling capabilities

• • Simple conversational interfaces without external tool requirements

• • Testing and development scenarios with limited integration needs

Setup Considerations:

• • Limited to text-based interactions

• • Requires manual result processing for complex outputs

• • Best suited for content generation and analysis tasks

OpenAI Functions Agent: For OpenAI Function Models

Function Calling Capabilities:

• • Native integration with OpenAI’s function calling API

• • Structured output generation for reliable tool integration

• • Advanced parameter validation and error handling

Performance Optimization:

• • Reduced token usage through efficient function descriptions

• • Faster execution through optimized API calls

• • Better reliability through structured output validation

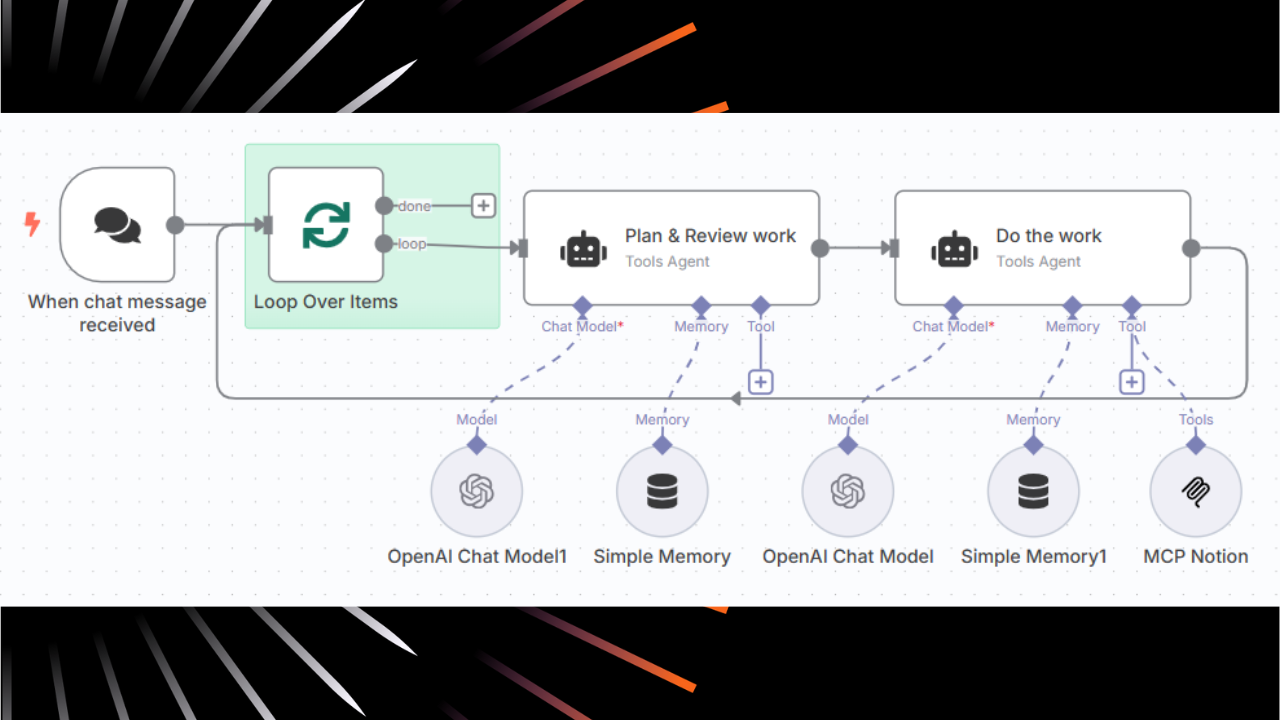

Plan and Execute Agent: For Complex Multi-Step Tasks

Task Planning Features:

• • Automatic breakdown of complex requests into manageable steps

• • Dynamic execution planning based on intermediate results

• • Progress tracking and milestone validation

Use Case Applications:

• • Multi-stage data processing workflows

• • Complex business process automation

• • Project management and task coordination

SQL Agent: For Database Interactions

Natural Language to SQL Translation: Instead of overloading the LLM context window with raw data, our agent will use SQL to efficiently query the database – just like human analysts do.

Implementation Example:

User Query: "What are our top-selling products this quarter by region?"
Agent Process:
- Interprets intent and identifies required data tables
- Generates optimized SQL query with proper joins and filters
- Executes query on connected database with security controls
- Formats results with regional breakdown and insights
- Suggests follow-up analysis opportunities

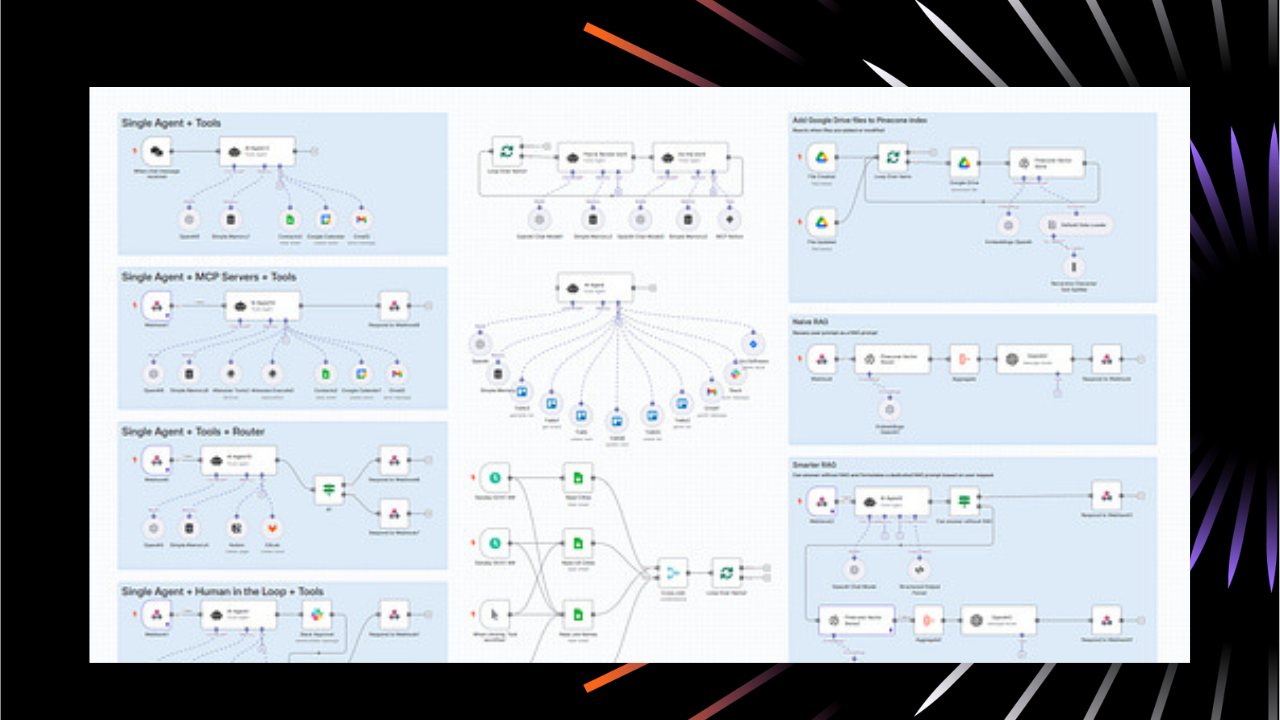

Types of n8n AI Agents: 8 Essential Architectures

Recent comprehensive analysis from ProductCompass’s AI Agent Architecture guide identifies eight essential agent configurations for production implementations.

Five Single n8n AI Agent Architectures

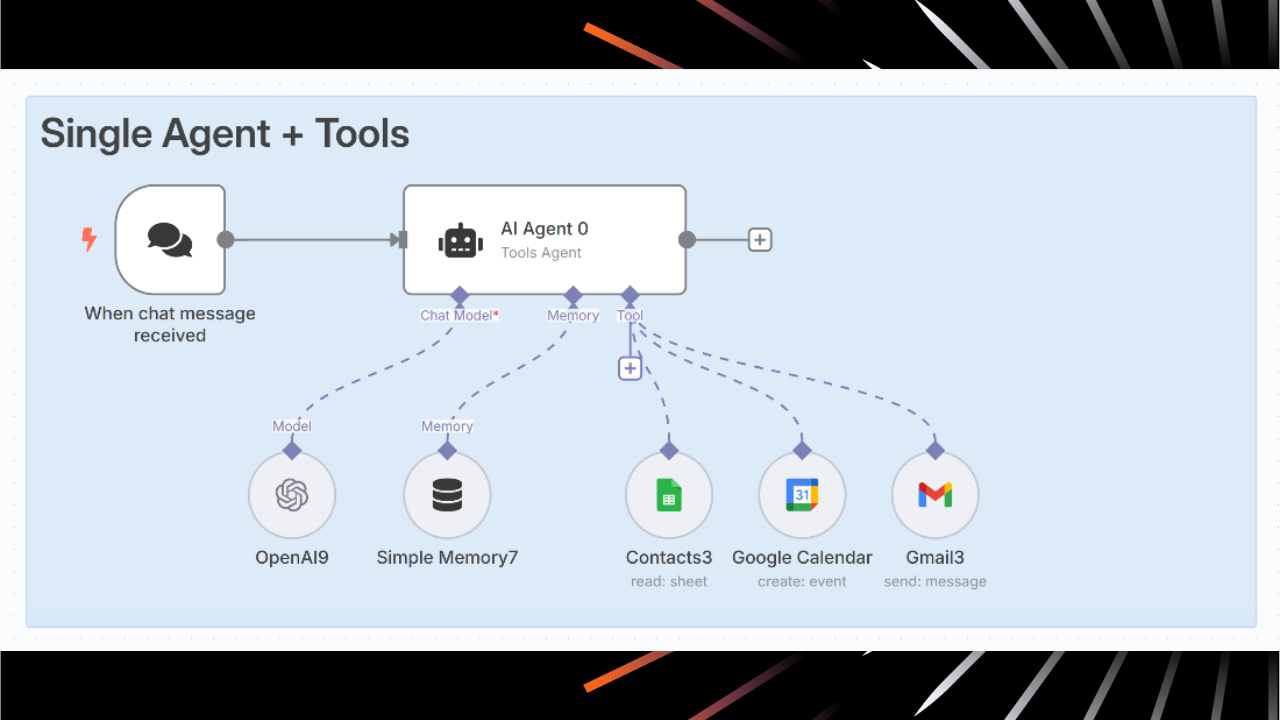

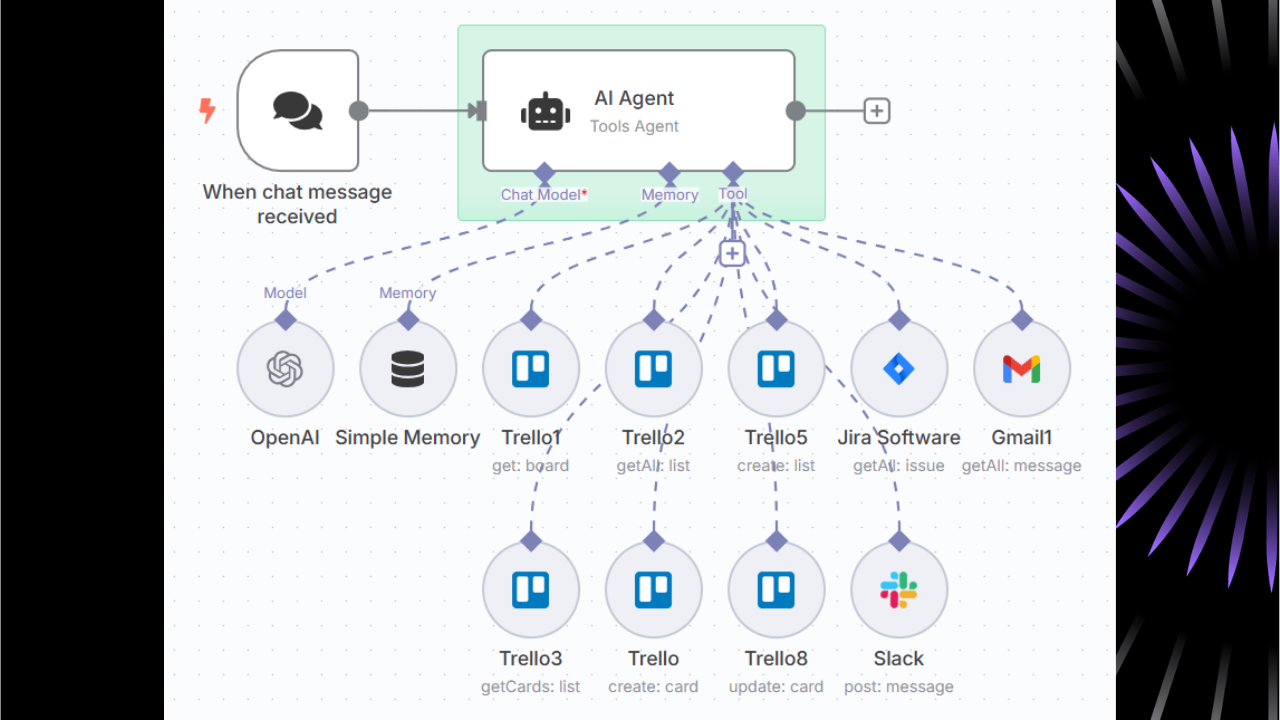

Tool-Based AI Agent (Multi-Tool Chat Orchestration)

This foundational architecture enables an AI agent to access multiple tools based on chat messages. The agent can:

• • Access contact databases and customer information

• • Send emails and calendar invitations

• • Manage scheduling and event coordination

• • Perform web searches and data lookups

• • Execute complex business logic through tool combinations

Implementation Pattern:

Chat Trigger → AI Agent Node → Multiple Tool Nodes (Gmail, Contacts, Calendar, SerpAPI)

Best Use Cases: Personal assistants, customer service automation, administrative task coordination

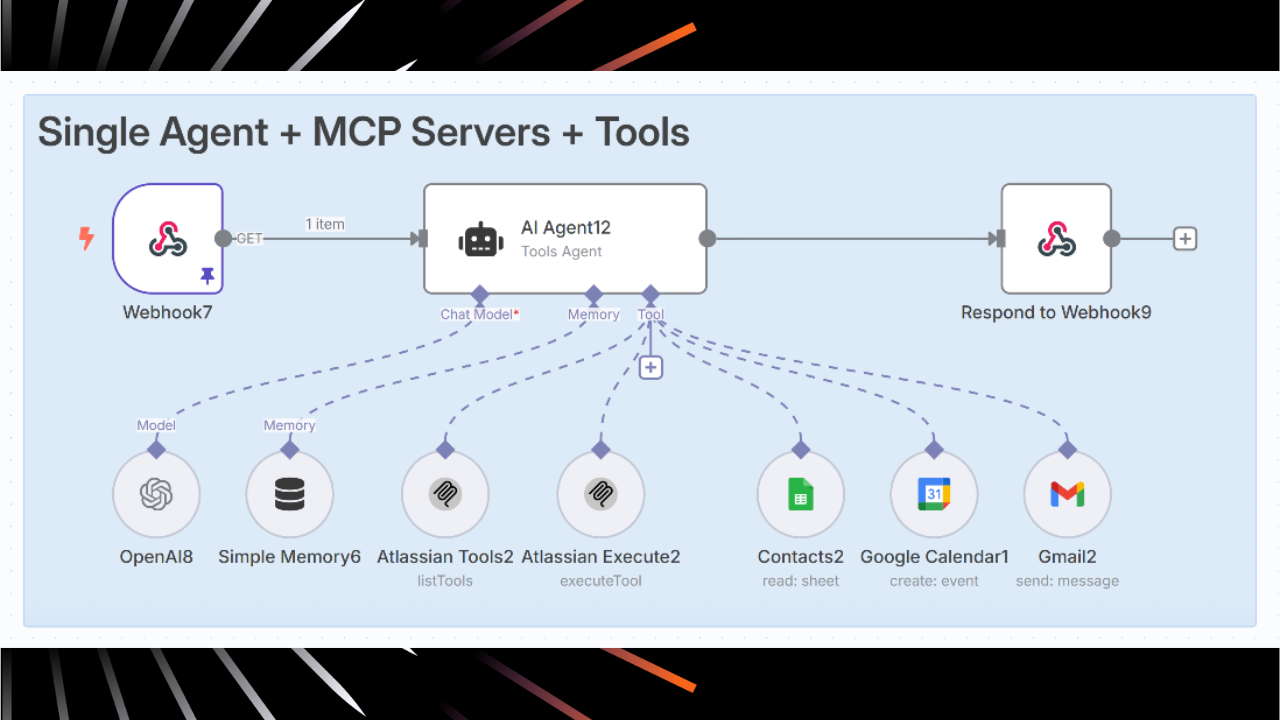

MCP Server Integration Agent (Enterprise Webhook-Triggered)

This advanced architecture combines Model Context Protocol (MCP) servers with traditional tools for enterprise environments:

Key Components:

• • MCP servers for deep enterprise integrations (Atlassian, Jira, Confluence)

• • Webhook triggers for external application initialization

• • Traditional tools for standard operations

• • Event-driven activation from multiple system sources

Enterprise Benefits:

• • Deep integration with existing enterprise software stacks

• • Scalable architecture supporting large organizational workflows

• • Event-driven operation reducing manual intervention requirements

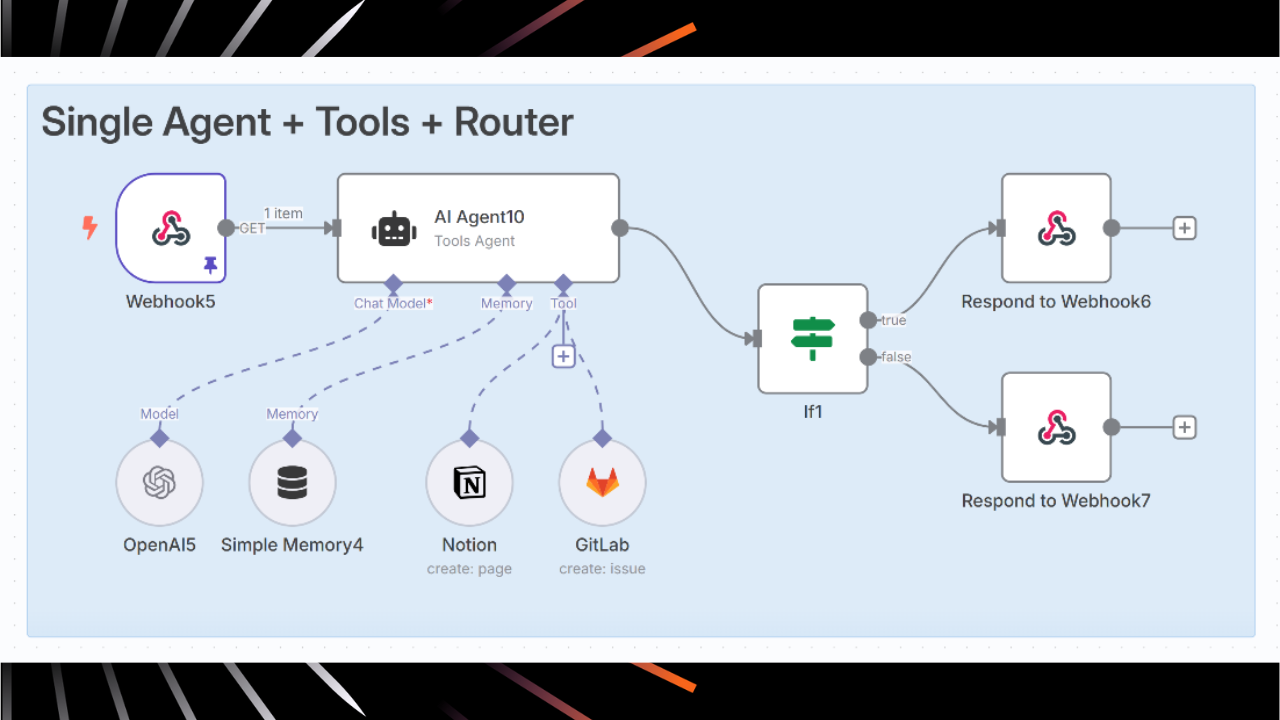

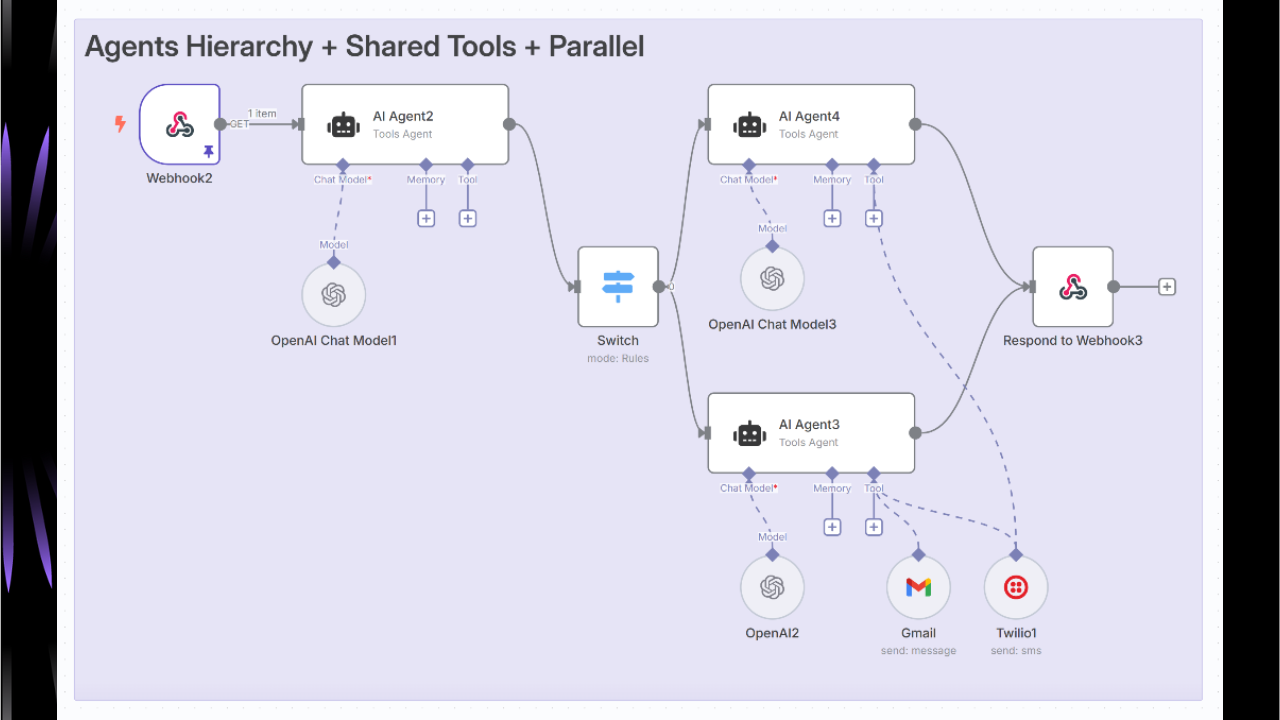

Router-Based Agentic Workflow (Conditional Logic Agent)

This pattern uses intelligent routing to direct different types of requests to specialized processing paths:

Architecture Components:

1. 1. Classification Agent: AI-powered request categorization and complexity assessment

1. 1. Routing Logic: Intelligent direction to appropriate sub-workflows

1. 1. Specialized Handlers: Optimized agent configurations for specific scenarios

1. 1. Result Aggregation: Unified output formatting and response coordination

Implementation Benefits:

• • Improved efficiency through specialized processing

• • Better resource utilization and cost optimization

• • Enhanced maintainability through modular design

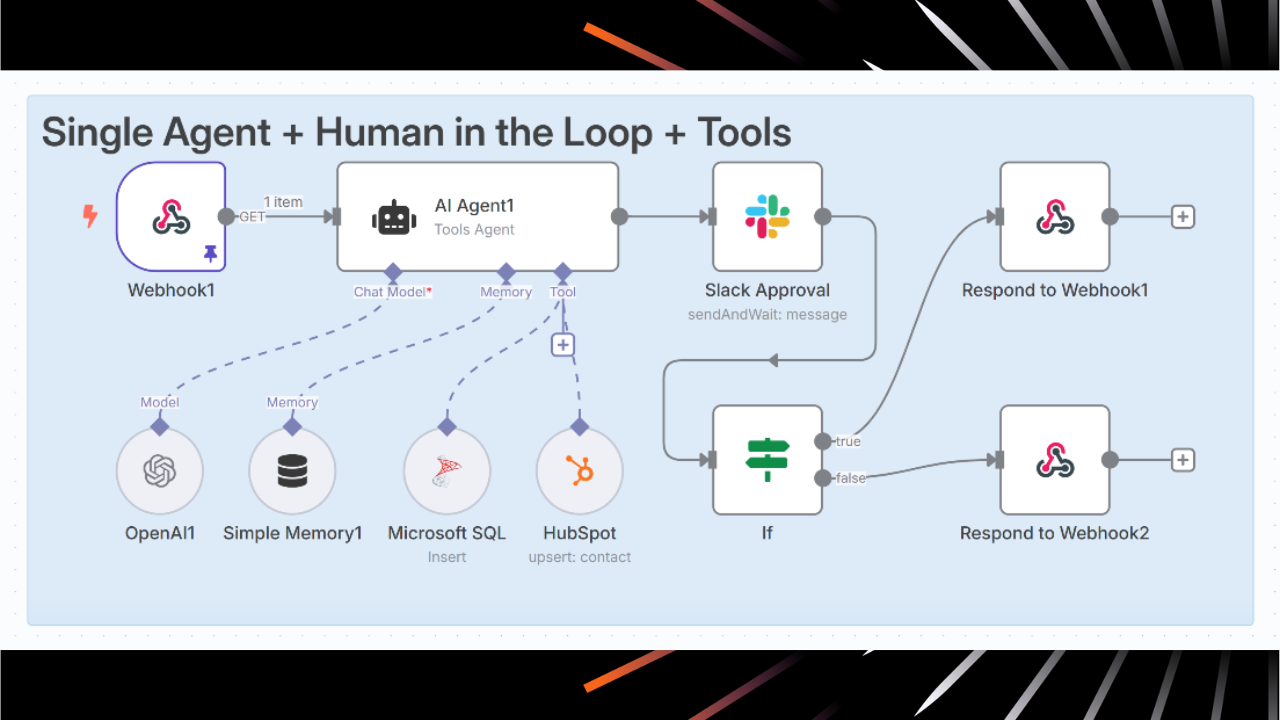

Human-in-the-Loop AI Agent (Approval-Based Workflow)

Critical for sensitive operations requiring human oversight:

Workflow Pattern:

1. 1. Automated Processing: AI handles standard operations up to decision points

1. 1. Human Approval Request: Automated notifications via Slack, email, or custom interfaces

1. 1. Conditional Execution: Workflow continues based on approval response

1. 1. Audit Trail Generation: Comprehensive logging for compliance and accountability

Use Cases: Financial transactions, sensitive data operations, high-stakes communications, regulatory compliance workflows

Dynamic Agent Calling System (Autonomous AI Coordination)

The most sophisticated single-agent architecture enabling autonomous multi-agent coordination:

Core Capabilities:

• • Task Complexity Assessment: Intelligent evaluation of resource requirements

• • Autonomous Agent Invocation: Dynamic calling of specialist agents when needed

• • Inter-Agent Communication: Coordinated information sharing and task delegation

• • Resource Optimization: Intelligent workload distribution and cost management

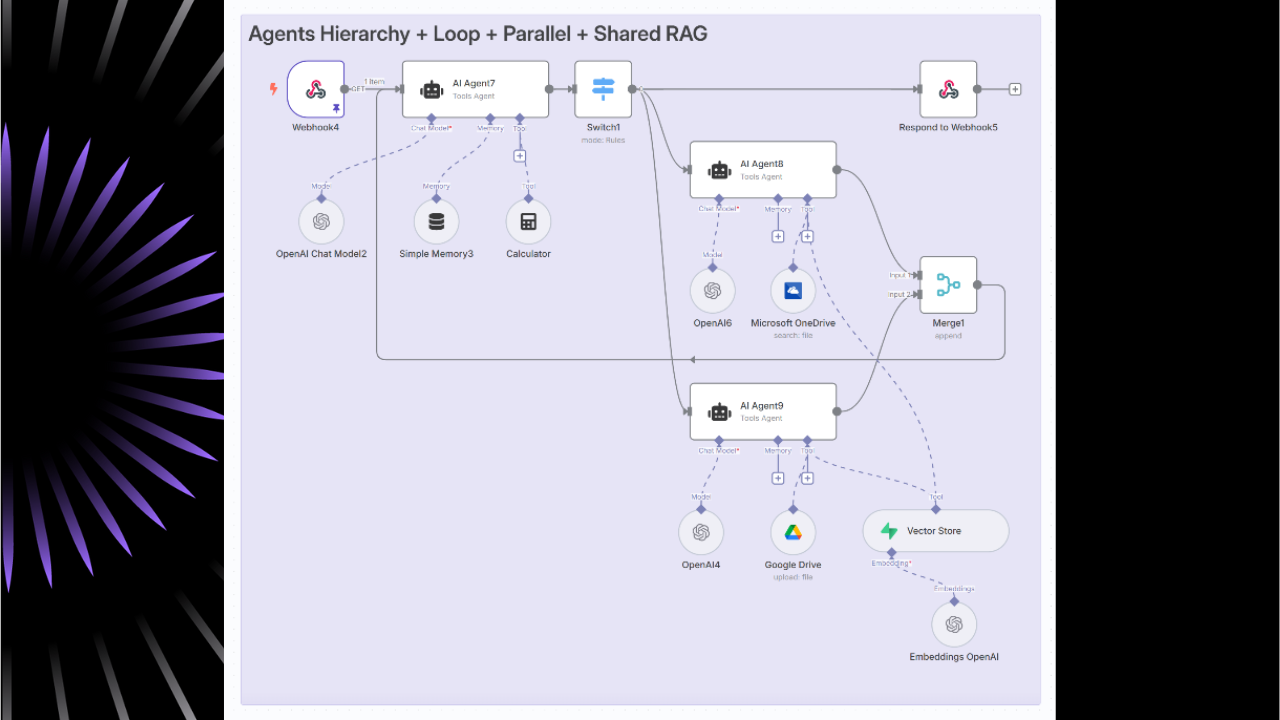

Three Multiple n8n AI Agent Architectures

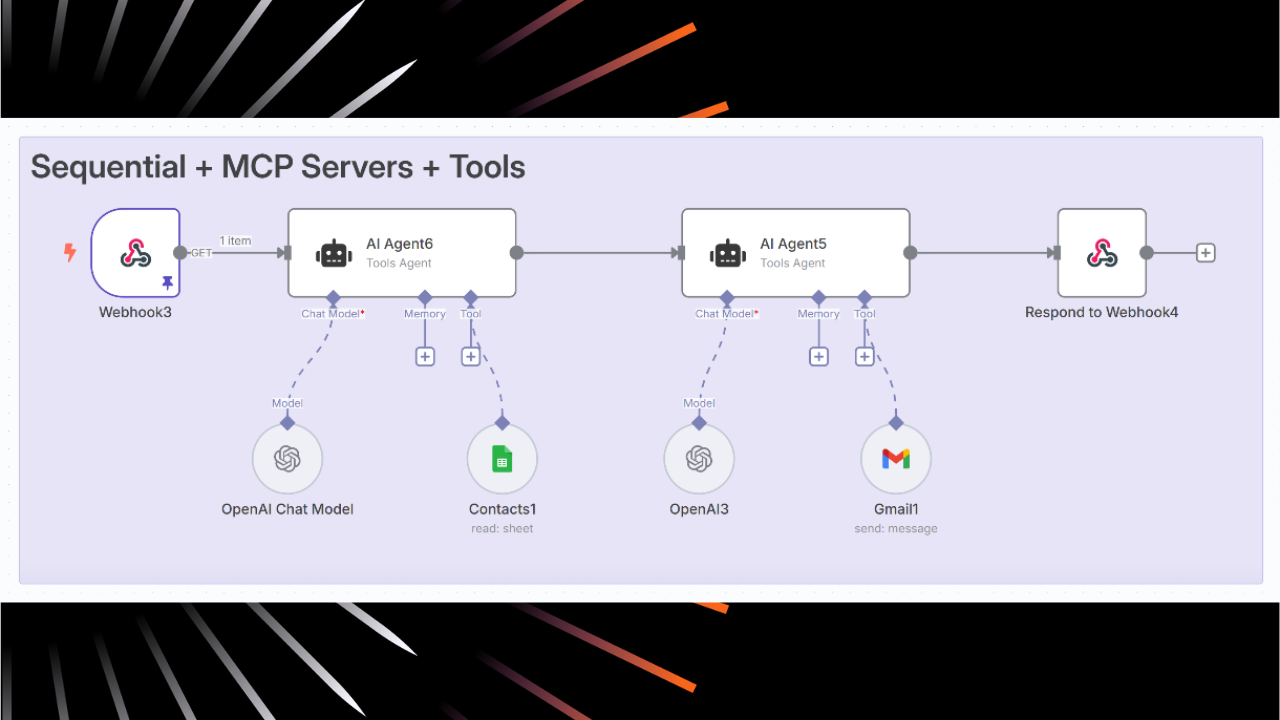

Sequential AI Agent Processing (Contact → Email Chain)

Workflow Pattern: Agent 1 (Contact Analysis) → Agent 2 (Email Composition) → Agent 3 (Send & Follow-up)

Implementation Benefits:

• • Specialized Expertise: Each agent optimized for specific capabilities

• • Clear Responsibility Separation: Easier debugging and performance optimization

• • Modular Design: Individual agent updates without affecting entire workflow

Real-World Example:

1. 1. Contact Agent: Searches CRM, validates recipient information, determines communication preferences

1. 1. Composition Agent: Creates personalized content based on contact history and current context

1. 1. Delivery Agent: Handles sending, tracking, and automated follow-up sequences

Parallel Agent Hierarchy with Shared Tools (Twilio Integration)

Multiple agents operating simultaneously while sharing access to common resources:

Architecture Benefits:

• • Parallel Processing: Significant speed improvements for multi-channel operations

• • Shared Resource Coordination: Efficient utilization of APIs and databases

• • Result Aggregation: Comprehensive outputs combining multiple perspectives

• • Scalable Design: Easy addition of new agents without architecture changes

Use Cases: Multi-channel communication campaigns, parallel data processing across different sources, distributed analysis tasks

Hierarchical Agents with Loop and Shared RAG (Parallel Search + Merge)

The most advanced multi-agent pattern featuring:

Core Components:

• • Supervisor Agents: High-level coordination and decision-making

• • Worker Agents: Specialized task execution and data processing

• • Shared RAG System: Common knowledge base with parallel search capabilities

• • Iterative Refinement: Feedback loops for continuous improvement

Implementation Benefits:

• • Comprehensive knowledge coverage across multiple domains

• • Reduced latency through parallel processing

• • Quality improvement through multiple agent perspectives

• • Scalable architecture for large knowledge bases

Setting Up Your First n8n AI Agent: Step-by-Step Tutorial

Prerequisites and Environment Setup

Required Components:

Following n8n’s introductory tutorial, building AI workflows involves understanding how the building blocks fit together.

1. 1. n8n Instance: Cloud account (free trial available) or self-hosted installation

1. 1. LLM API Access: OpenAI, Google, Anthropic, or open-source alternatives

1. 1. Integration Credentials: For target applications (Gmail, Slack, databases)

Creating the Basic n8n AI Agent Workflow

Step 1: Adding and Configuring the Chat Trigger Node

Every workflow needs somewhere to start. In n8n these are called ‘trigger nodes’. For this workflow, we want to start with a chat node.

1. 1. Create new workflow in n8n interface

1. 1. Add “Chat Trigger” node from the node palette

1. 1. Configure for manual testing using built-in chat interface

1. 1. Set up webhook URL if external integration is required

Step 2: Setting Up the n8n AI Agent Node

The AI Agent node is the core of adding AI to your workflows.

1. 1. Add “AI Agent” node after Chat Trigger

1. 1. Configure prompt source (automatic from chat trigger recommended)

1. 1. Define system message for agent behavior and capabilities

Optimized System Message Example:

You are a helpful business assistant with access to email, calendar, and contact management tools.

Your capabilities include:
- Searching and managing customer contacts
- Sending emails and calendar invitations
- Scheduling meetings and coordinating events
- Accessing company knowledge base for information retrieval

Guidelines:
- Always confirm actions before executing them
- Ask for clarification when requests are ambiguous
- Maintain professional communication style
- Escalate complex issues to human operators when appropriate

Step 3: Connecting Chat Models

AI agents require a chat model to process incoming prompts:

1. 1. Click the “+” button under Chat Model connection

1. 1. Select preferred model (OpenAI GPT-4, Google Gemini, Anthropic Claude)

1. 1. Configure API credentials securely through n8n’s credential system

1. 1. Set model parameters:

      • • Temperature: 0.3 for consistent responses, 0.7 for creative tasks
      • • Max Tokens: Set appropriate limits based on use case requirements
      • • Model Version: Use latest stable release for optimal performance

Memory and Context Management in n8n AI Agents

Short-Term Memory: Window Buffer Implementation

In order to remember what has happened in the conversation, the AI Agent needs to preserve context.

1. 1. Click “+” under Memory connection on AI Agent node

1. 1. Add “Simple Memory” node for conversation history

1. 1. Configure memory settings:

      • • Memory Window: 5-10 interactions for most use cases
      • • Buffer Size: Optimize based on context requirements
      • • Conversation Tracking: Enable for multi-turn interactions

Long-Term Memory: Database and Custom Storage Solutions

For persistent memory beyond simple conversation history:

Database Integration Options:

• • PostgreSQL: Structured conversation storage with querying capabilities

• • MongoDB: Flexible document storage for complex conversation data

• • Vector Databases: Semantic search capabilities for knowledge retrieval

Implementation Pattern:

Conversation Input → Memory Processing → Database Storage → Context Retrieval → Agent Response

Testing and Debugging Your n8n AI Agent

Using the Built-in Chat Interface

1. 1. Click the ‘Chat’ button near the bottom of the canvas

1. 1. Open local chat window for direct agent interaction

1. 1. Test various scenarios and edge cases

1. 1. Monitor agent logs in the right panel for debugging

Analyzing AI Agent Logs and Performance

Common issues and resolution steps are documented in n8n’s troubleshooting guide.

Key Metrics to Monitor:

• • Response time and execution duration

• • Token usage and API costs

• • Tool selection accuracy

• • Error rates and failure patterns

• • Memory usage and context efficiency

Advanced n8n AI Agent Configurations

Retrieval-Augmented Generation (RAG) with n8n AI Agents

Vector Database Setup and Configuration (Pinecone, Qdrant)

Pinecone Integration:

1. 1. Create Pinecone account and obtain API keys

1. 1. Configure vector dimensions based on embedding model

1. 1. Set up index with appropriate metadata fields

1. 1. Connect to n8n through HTTP Request or dedicated nodes

Qdrant Configuration:

1. 1. Deploy Qdrant instance (cloud or self-hosted)

1. 1. Create collections with vector and payload schemas

1. 1. Configure embedding model compatibility

1. 1. Integrate with n8n agent workflows

Building Custom Knowledge Chatbots

Implementation Steps:

1. 1. Document Processing: Chunk and embed knowledge base content

1. 1. Vector Storage: Index embeddings in chosen vector database

1. 1. Retrieval Logic: Implement semantic search functionality

1. 1. Context Integration: Combine retrieved knowledge with agent prompts

1. 1. Response Generation: Generate informed responses using augmented context

Agents vs Chains in n8n Workflows

Understanding the Distinction

Chains: Predetermined sequences of operations with fixed execution order Agents: Dynamic decision-makers that choose tools and execution paths based on context

When to Use Agents vs Chains

Use Chains When:

• • Workflow steps are well-defined and consistent

• • Predictable input/output patterns

• • Performance optimization is critical

• • Debugging complexity needs to be minimized

Use Agents When:

• • Dynamic decision-making is required

• • Multiple tool options are available

• • Handling unpredictable inputs

• • Adaptive behavior based on context is needed

Performance Optimization for n8n AI Agents

Cost Management and Token Optimization

Token Usage Optimization Strategies

Prompt Optimization:

• • Use concise, clear system messages

• • Implement dynamic context truncation

• • Cache frequently used prompt components

• • Optimize tool descriptions for clarity and brevity

Model Selection for Cost Efficiency:

• • Use appropriate model sizes for task complexity

• • Implement model routing based on query type

• • Consider open-source alternatives for non-sensitive operations

• • Monitor and optimize API usage patterns

Caching Mechanisms for Repeated Queries

Response Caching Implementation:

javascript

// Example caching logic for n8n Code node
const cache = new Map();
const cacheKey = `${query}_${context}`;

if (cache.has(cacheKey)) {
    return cache.get(cacheKey);
}

const response = await processQuery(query, context);
cache.set(cacheKey, response);
return response;

Memory Management and Context Optimization

Memory Usage Optimization:

• • Configure appropriate memory windows based on use case

• • Implement conversation summarization for long sessions

• • Use persistent storage judiciously

• • Monitor memory usage patterns and optimize accordingly

Benchmarking and Performance Measurement:

• • Track response times across different agent configurations

• • Monitor token usage and cost per interaction

• • Measure tool selection accuracy and efficiency

• • Analyze conversation quality and user satisfaction metrics

Security Best Practices for n8n AI Agents

Data Privacy and External LLM Considerations

Handling Sensitive Information in Agent Workflows

Data Classification Framework:

• • Public: No restrictions on processing

• • Internal: Company-specific but non-sensitive

• • Confidential: Restricted access required

• • Highly Confidential: Maximum security controls

Implementation Strategies:

• • Use data masking for sensitive information in LLM requests

• • Implement local processing for highly sensitive data

• • Configure data retention policies for conversation logs

• • Establish clear data handling procedures for different classification levels

GDPR, HIPAA, and Regulatory Compliance

GDPR Compliance Requirements:

• • Implement data subject access rights

• • Ensure data portability and deletion capabilities

• • Maintain consent tracking and management

• • Establish data processing agreements with LLM providers

HIPAA Considerations:

• • Use Business Associate Agreements (BAAs) with LLM providers

• • Implement comprehensive audit logging

• • Ensure data encryption in transit and at rest

• • Establish incident response procedures

Authentication and Authorization Frameworks

Credential Management and API Security

Best Practices:

• • Store credentials using n8n’s secure credential system

• • Implement credential rotation procedures

• • Use environment-specific credential sets

• • Monitor credential usage and access patterns

Access Control and Permission Management

Role-Based Access Control (RBAC):

• • Define clear roles and permissions for agent access

• • Implement principle of least privilege

• • Regular access reviews and updates

• • Segregation of duties for sensitive operations

n8n AI Agent Use Cases and Business Applications

Customer Service and Support with n8n AI Agents

Popular workflow templates like the AI Agent Chatbot with Long-Term Memory demonstrate sophisticated implementations with Google Docs integration and Telegram connectivity.

Multi-Agent Architecture Implementation:

• • Triage Agent: Classifies inquiries and determines urgency levels

• • Knowledge Agent: Searches FAQ, documentation, and previous case history

• • Resolution Agent: Provides solutions and creates support tickets when needed

• • Follow-up Agent: Ensures customer satisfaction and case closure

Implementation Benefits:

• • 24/7 availability with consistent response quality

• • Automatic escalation for complex issues requiring human intervention

• • Integration with existing help desk and CRM systems

• • Reduced response times and improved customer satisfaction scores

Data Analysis and Business Intelligence AI Agents

SQL AI Agent Implementation:

Instead of overloading the LLM context window with raw data, our agent uses SQL to efficiently query databases – just like human analysts do.

Workflow Process:

1. 1. Natural Language Interface: Business users ask questions in plain English

1. 1. Query Generation: Agent converts questions to optimized SQL queries

1. 1. Data Retrieval: Execute queries on connected databases with security controls

1. 1. Analysis & Visualization: Present findings with charts and actionable insights

1. 1. Report Generation: Create automated reports with key metrics and trends

Content Creation and Management

The n8n AI agents practical examples guide presents 15 real-world examples of AI agents automating tasks like data analysis and customer support.

Social Media Automation Implementation:

• • Content Planning Agent: Develops content calendars based on trends and engagement data

• • Content Generation Agent: Creates platform-specific posts optimized for each channel

• • Publishing Agent: Schedules and distributes content across multiple platforms

• • Analytics Agent: Monitors performance and provides optimization recommendations

Troubleshooting Common n8n AI Agent Issues

n8n AI Agent Configuration and Setup Problems

Chat Model Connection Errors

This error displays when n8n runs into an issue with the Simple Memory sub-node. It most often occurs when your workflow or the workflow template you copied uses an older version of the Simple memory node.

Common Solutions:

• • Remove existing memory node and re-add latest version

• • Verify API credentials and permissions

• • Check model availability and quota limits

• • Ensure proper network connectivity to LLM providers

Memory Node Configuration Problems

Troubleshooting Steps:

1. 1. Verify memory node version compatibility

1. 1. Check memory window size configuration

1. 1. Validate conversation context format

1. 1. Monitor memory usage patterns and optimization

Advanced n8n AI Agent Debugging Techniques

Log Analysis and Error Tracking

Debugging Workflow:

1. 1. Enable Verbose Logging: Configure detailed logging for agent operations

1. 1. Analyze Execution Logs: Review step-by-step execution details

1. 1. Identify Bottlenecks: Locate performance issues and optimization opportunities

1. 1. Monitor Error Patterns: Track recurring issues and implement preventive measures

Workflow Testing and Validation

Testing Framework:

• • Unit Testing: Individual agent components and tool integrations

• • Integration Testing: End-to-end workflow validation

• • Performance Testing: Load testing and scalability validation

• • User Acceptance Testing: Real-world scenario validation

n8n AI Agent Alternatives and Comparisons

n8n AI Agent vs Other AI Automation Platforms

n8n AI Agent vs Zapier AI Features

n8n Advantages:

• • Open source foundation with community contributions

• • Self-hosting options for complete data control

• • Unlimited executions on self-hosted instances

• • Advanced AI agent capabilities with multi-agent support

Zapier Advantages:

• • Larger pre-built integration ecosystem

• • Simpler setup for non-technical users

• • Established market presence with extensive documentation

n8n AI Agent vs Make (Integromat) AI Capabilities

n8n Advantages:

• • Superior AI integration with LangChain support

• • Cost-effective scaling for high-volume operations

• • Open source flexibility and customization

• • Advanced agent architectures and patterns

Make Advantages:

• • Visual scenario builder with intuitive interface

• • Strong enterprise support and service level agreements

• • Comprehensive error handling and debugging tools

When to Choose n8n AI Agent for Development

Ideal Scenarios:

• • Rapid Prototyping Needs: Quick development and testing of AI workflows

• • Multi-System Integration: Complex workflows requiring numerous external connections

• • Cost-Conscious Implementations: Budget constraints requiring cost optimization

• • Technical Teams: Organizations with development resources for customization

• • Data Privacy Requirements: Self-hosted solutions for sensitive data processing

Technical Assessment Criteria:

• • Integration complexity and external system requirements

• • Development team technical capabilities and resources

• • Data sensitivity and privacy compliance requirements

• • Scalability needs and future growth projections

• • Total cost of ownership including development and maintenance

Future of n8n AI Agents and Workflow Automation

Emerging Trends in n8n AI Agent Technology

Advanced Reasoning Models Integration

Next-Generation Capabilities:

• • Integration with reasoning-specific models (OpenAI o1, o3)

• • Multi-step problem solving with enhanced logical reasoning

• • Mathematical and scientific computation capabilities

• • Complex decision-making with uncertainty handling

Multimodal AI Agent Capabilities

Expanding Input/Output Modalities:

• • Image and document processing integration

• • Voice interaction and audio processing support

• • Video content analysis and generation

• • Multi-sensory data integration for IoT applications

Integration with Model Calling Protocol (MCP)

Enhanced Enterprise Integration:

• • Standardized protocol for tool and resource access

• • Improved interoperability between different AI systems

• • Scalable architecture for enterprise-grade deployments

• • Enhanced security and governance capabilities

n8n AI Agent Roadmap and Feature Development

Upcoming Enhancements:

• • Enhanced multi-agent coordination and communication protocols

• • Improved debugging and monitoring tools for complex workflows

• • Expanded integration marketplace with pre-built agent templates

• • Enterprise-grade security and compliance features

• • Performance optimization and cost management tools

Community-Driven Development:

• • Active open-source community driving innovation

• • Regular feature requests and community feedback integration

• • Beta testing programs for early access to new capabilities

• • Collaborative development of agent architectures and best practices

Frequently Asked Questions (FAQ)

n8n AI Agent Basics

Is n8n AI Agent the same as ChatGPT?

No, while both use LLM technology, they serve different purposes. ChatGPT is designed for conversational AI and content generation, while n8n AI agents are built for workflow automation and business process integration. n8n AI agents can connect to hundreds of external applications and operate autonomously, whereas ChatGPT requires human input for each interaction.

Do I need coding skills to use n8n AI agents?

Basic n8n AI agent implementation requires minimal coding knowledge. The visual workflow builder allows you to create sophisticated agents through drag-and-drop interfaces. However, advanced customizations and complex integrations may benefit from JavaScript knowledge for custom tool development.

What technical infrastructure is required?

Minimum Requirements:

• • n8n instance (cloud or self-hosted)

• • LLM API access (OpenAI, Google, Anthropic, etc.)

• • Internet connectivity for external integrations

• • Basic authentication credentials for target applications

Recommended for Production:

• • Dedicated server resources for self-hosted deployments

• • Backup and disaster recovery procedures

• • Monitoring and logging infrastructure

• • Security controls and access management systems

Security and Compliance

How secure are n8n AI agents for handling sensitive data?

n8n AI agents can be highly secure when properly configured. Key security measures include:

• • Credential encryption and secure storage

• • Data classification and handling procedures

• • Network security and access controls

• • Audit logging and monitoring capabilities

• • Compliance frameworks for regulated industries

For highly sensitive data, consider self-hosted deployments and local LLM integration to maintain complete data control.

How do n8n AI agents ensure regulatory compliance?

Compliance depends on proper configuration and operational procedures:

• • GDPR: Implement data subject rights, consent management, and data retention policies

• • HIPAA: Use Business Associate Agreements with LLM providers and maintain comprehensive audit trails

• • SOC 2: Follow security controls for availability, confidentiality, and processing integrity

• • Industry-Specific: Implement relevant compliance frameworks based on your sector

Technical Implementation

What are the limitations of current n8n AI agent implementations?

Current Limitations:

• • Sequential execution model can impact performance for complex workflows

• • Memory constraints for very long conversations

• • API rate limits from external LLM providers

• • Limited offline operation capabilities

• • Token costs for high-volume operations

Mitigation Strategies:

• • Implement caching for repeated queries

• • Use conversation summarization for long interactions

• • Design efficient prompt structures to minimize token usage

• • Consider hybrid architectures with local processing for specific use cases

---

Sources and References

Official n8n Documentation

1. 1. AI Agent Node Documentation – Core functionality and implementation details

1. 1. Tools Agent Implementation Guide – Tools Agent configuration and capabilities

1. 1. AI Agent Common Issues – Troubleshooting and problem resolution

1. 1. Build an AI Chat Agent Tutorial – Step-by-step implementation guide

1. 1. Understanding AI Agents – Core concepts and principles

1. 1. Advanced AI Examples and Concepts – Workflow templates and use cases

n8n Platform Resources

7. 7. n8n AI Agent Integrations – Platform overview and integration capabilities

n8n Official Blog Posts

8. 8. AI Agents Explained: From Theory to Practical Deployment – Comprehensive guide to AI agent fundamentals

8. 8. AI Agentic Workflows: A Practical Guide – Advanced workflow patterns and design

8. 8. How to Build Your First AI Agent – Complete building tutorial with templates

8. 8. 15 Practical AI Agent Examples – Real-world business applications

Community Resources and Templates

12. 12. AI Agent Chat Workflow Template – Basic conversational agent implementation

12. 12. AI Agent Chatbot with Long-Term Memory – Advanced memory and storage integration

12. 12. Step-by-Step n8n AI Agent Tutorial 2025 – Community tutorial guide

12. 12. Best Practices for Iterative AI Agent Workflows – Community best practices

Expert Analysis and Architecture Guides

16. 16. AI Agent Architectures: The Ultimate Guide – Eight essential agent configurations and patterns

16. 16. A Hands-On Guide to Building Multi-Agent Systems – Enterprise multi-agent implementation

Educational Resources and Tutorials

18. 18. Master n8n AI Agents Course – Comprehensive training program

18. 18. AI Automation with n8n and APIs – Technical implementation course

18. 18. How to Build an AI Agent with n8n on Hostinger VPS – Deployment and hosting guide

18. 18. Building Complex AI Agents with n8n – Advanced implementation strategies

Industry Analysis and Use Cases

22. 22. 8 Powerful AI Agent Use Cases for Automation – Business application examples and workflows

---

Note: All sources were accessed and verified as of May 2025. Links and content may be subject to updates by the respective platforms.

---

Conclusion

n8n AI agents represent a transformative convergence of artificial intelligence and visual workflow automation, enabling organizations to create sophisticated, intelligent automation without extensive coding expertise. From simple tool-based agents to complex hierarchical multi-agent systems with shared RAG capabilities, n8n provides the flexibility and power needed to build production-ready AI agents for virtually any business scenario.

The eight essential architectural patterns—ranging from single-agent tool orchestration to advanced hierarchical systems with parallel processing—offer proven blueprints for implementing AI automation across diverse industries and use cases. Whether you’re automating customer service operations, enhancing data analysis workflows, or streamlining complex business processes, n8n AI agents provide a cost-effective, scalable foundation for intelligent automation.

As the technology continues to evolve with advanced reasoning models, multimodal capabilities, and enhanced enterprise features, n8n’s open-source foundation and active community ensure that your AI agent implementations will benefit from ongoing improvements and new capabilities. The future of business automation is intelligent, adaptive, and accessible—and n8n AI agents are at the forefront of this transformation.

Start with the fundamental architectures, apply the best practices and optimization strategies outlined in this guide, and gradually expand to more sophisticated multi-agent systems as your expertise and requirements grow. The age of intelligent workflow automation has arrived, and n8n AI agents provide the tools and flexibility to harness its full potential for your organization.
